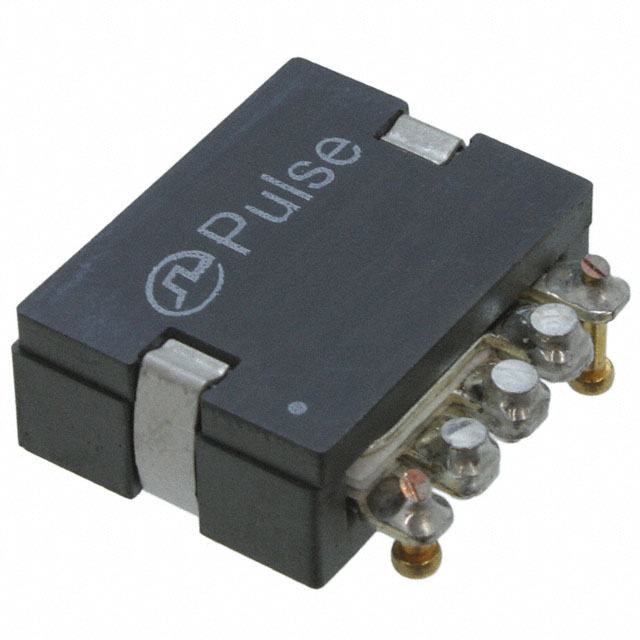

PA1393.102NL
FIXED IND 1UH 42A 1.43 MOHM SMD
part Number：
PA1393.102NL
Alternative Model：
PA1393.102NLT
manufacturer：
Pulse Larsen Antenna
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 1UH 42A 1.43 MOHM SMD
RoHS：
YES
PA1393.102NL specifications
Mounting Type：
Surface Mount
Operating Temperature：
-40°C ~ 130°C
Shielding：
Shielded
Package / Case：
Nonstandard
Tolerance：
±15%
Height - Seated (Max)：
0.290" (7.37mm)
Inductance：
1 µH
Type：
Planar
DC Resistance (DCR)：
1.43mOhm Max
Size / Dimension：
0.780" L x 0.770" W (19.81mm x 19.56mm)
Current - Saturation (Isat)：
68A
Current Rating (Amps)：
42 A
